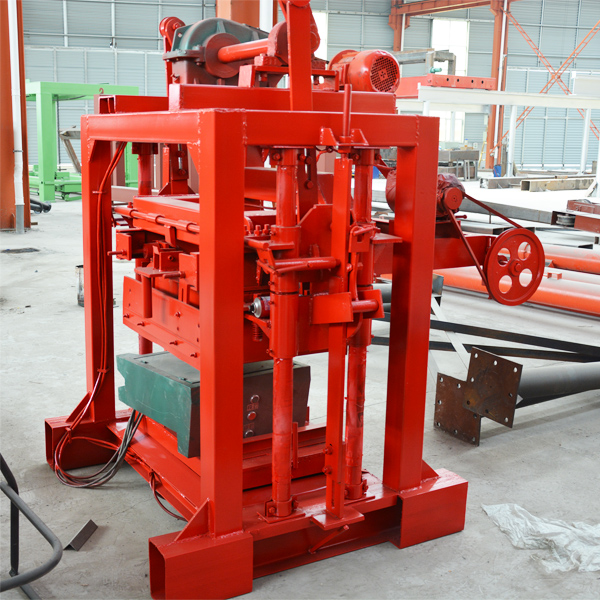

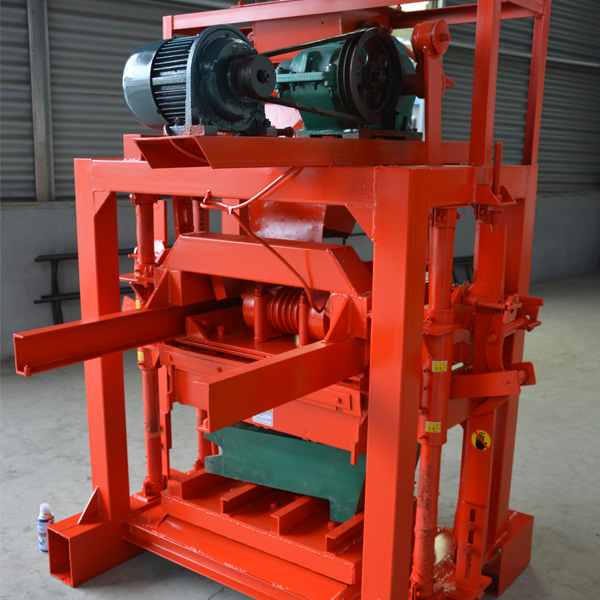

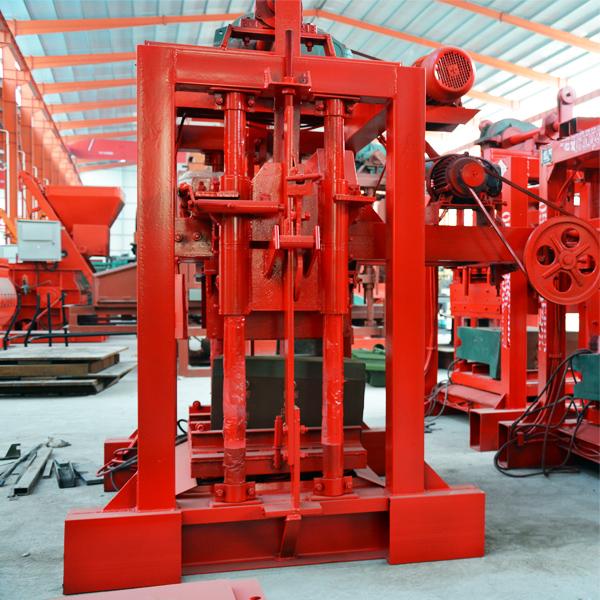

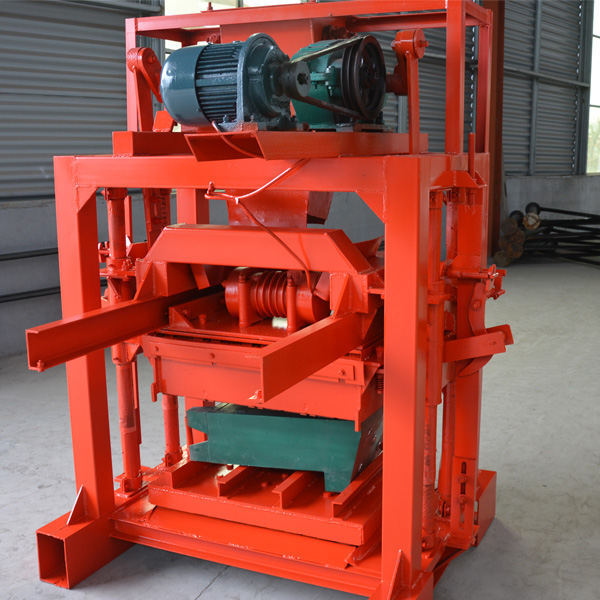

QTJ4-40 block building machine brick manufacture machine

$2,400.00

Advantages of Small QT4-40 block making machine

(1) adopt 350 reductor when other’s 250 reductor

(2) for the steel frame 5mm, much stronger

(3) 2.2kw mortor, 3kw vibrator(upper mould) and 2×2.2kw vibrator(down mould), the hollow block

pressure 8-10Mpa, solid blocks pressure 10-12Mpa.

(4) For the moulds: high temperature carburizing heat treatment, it is durable.

(5) low investment for small scaled factory.

描述

Introduction of block building machine brick manufacture machine

4-40   is to meet the demand of many investors. With simple and compact structure, convenient operation and easy maintenance, it requires little        manpower and investment, but makes high output and quick economic returns.
Especially it is suitable to produce standard bricks, the strength of which is higher than that of clay bricks. Various types of blocks can be produced with different molds. Therefore, it is an ideal choice for enterprise with small investment.

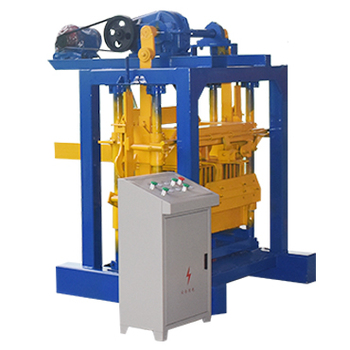

QTJ4-40B2 block making machine

It is the reformed machine with reasonable design, favorable property, and super-strong vibration motor. And it manufactures bricks with good quality, large density, and high strength. This machine adopts top die push and pull and automatic scraper, which is simple to operate as well as the large-scale equipment.

Technical parameters of block building machine brick manufacture machine

Overall size

116x165x200cm

Reducer model

350

Host machine power

9.6kw

Total weight

1500kg

Forming cycle

35-40s

Pallet size

850x450x25mm

QTJ4-40 block brick machine for sale

Lifting Motor Power

Upper Mould

Vibrate Power

Down Mould

Vibrate Power

Host Machine Power

2.2kw

3kw

2.2kw*2

9.6kw




QTJ4-40  Capacity

Size(LxWxH)

Pcs/Mould

Pcs/hour

Pcs/ 8 Hr

400X150X200mm

5

450

3600

400X200X200mm

4

360

2880

400X100X200mm

7

630

5040

400X240X190mm

3

270

2160

240X115X52mm

21

1890

15120

We can also design the moulds for your requirement



其他信息

Forming cycle

35-40s

Type

Concrete Block Machine ,Hollow Block Machine , Solid block machine
