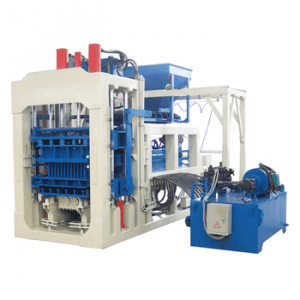

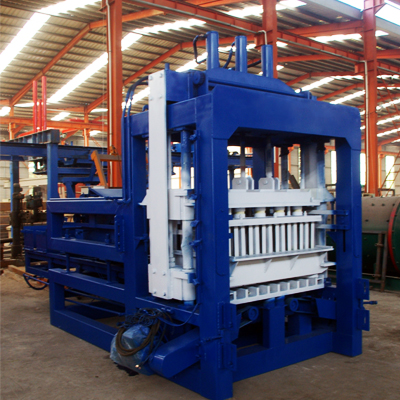

QT12-15 full auto concrete block model moulding for paver stone


1.The machine adopts hydraulic system and the working procedure is very even and dependable,

2. It is a practical machine that simple in structure, artistic in figure.
3.Especially suitable to the production of the standard bricks
4. The reasonable material proportion have the capacity of making highdensity standard bricks,


QT12-15 full auto concrete block model moulding for paver stone Function
QTF12-15 automatic brick making machine can produce different shapes bricks by changing mould.Besides, the mould can be designed according to the need of customer.
2. High production efficiency
This chinese fully automatic brick making machine is a high efficient machine and the shaping cycle is 15s. The production can start and finish just by pressing start button, so the production efficiency is high with labor saving, it can produce 110000 pieces bricks per 8 hours.
3. Advanced technology
Hydraulic pressure molding technology is adopted by this machine, and the pressure can arrive at 100 MPa, so the blocks produced are of good quality, large density and high strength.
4. High quality mould
The company adopts the most advanced cutting technology and heat treatment technology to ensure product quality and ensure customers’ ease.

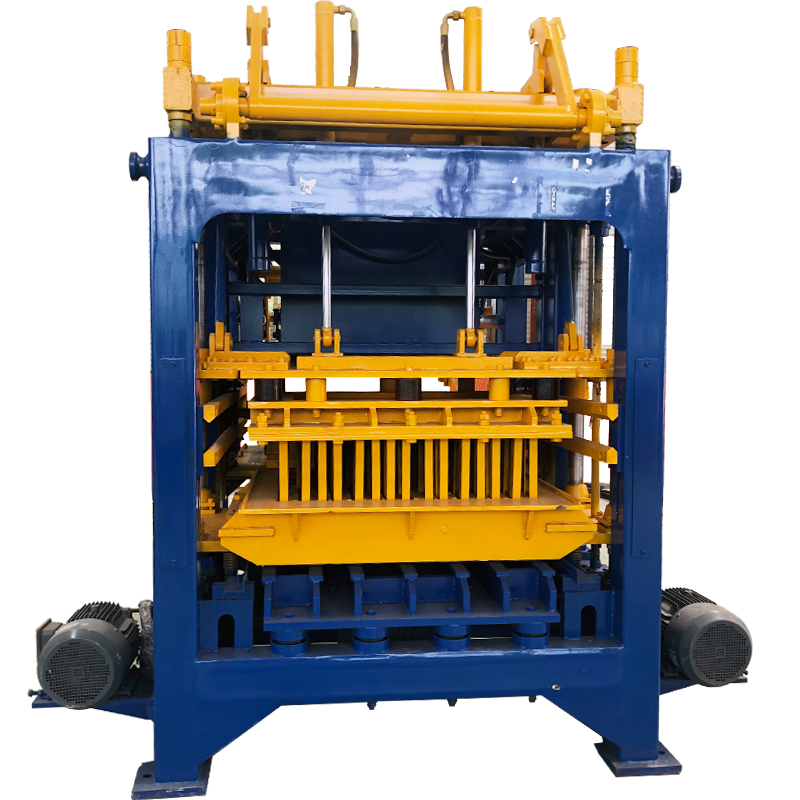

QT 12-15  full auto concrete block model moulding for paver stone Model Specification

Hollow Block Capacity(390×190×190mm) 12/module
Solid Brick Capacity(240×115×53mm) 60/module
Holland Brick Capacity(240×115×90mm) 30/module
Main Dimension(L×W×H) 8200×2300×3000(mm)

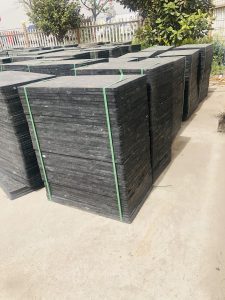

Pallet Size(L×W×H) 1310×840×40(mm)
Pressure Rating 12~25Mpa
Vibration 50~90KN
Vibration Frequency 2900~5600r/min
Cycle Time 15-20(s)
Power(Total) 46kw
Weight 13000kg

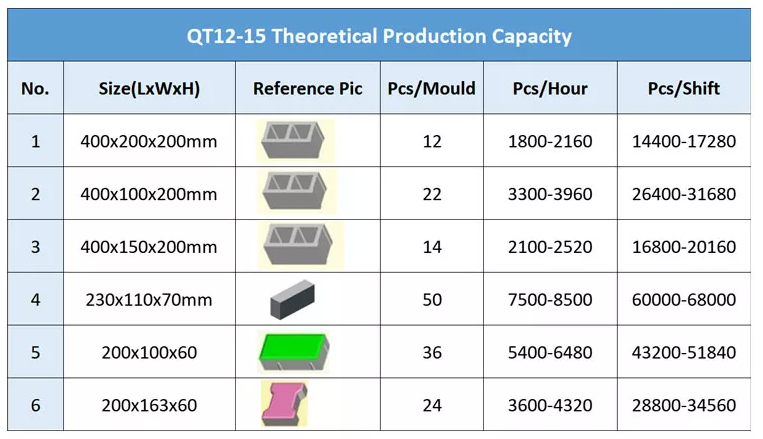

Hollow Block Capacity(390×190×190mm) 19200-23040/8hours
Solid Brick Capacity(240×115×53mm) 97920-115200/8hours
Holland Brick Capacity(200×100×60mm)
