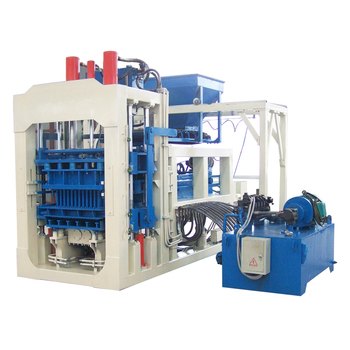

QT6-15 automatic concrete manufacturing machines list

$17,000.00

Advantage as follows:

1)Fully automatic,PLC control. Automatic in
material feeding,material distributing,material scraping ,carriage plate placing ,brick convey.
2).High production efficiency.

描述

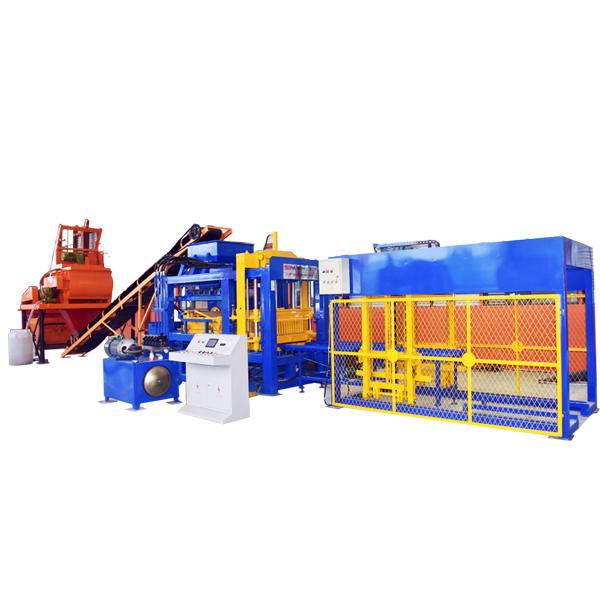

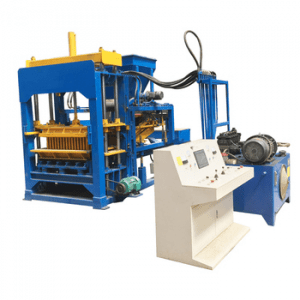

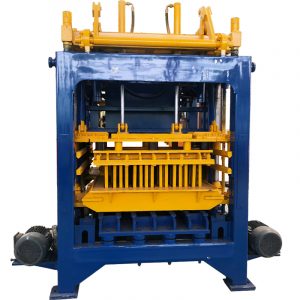

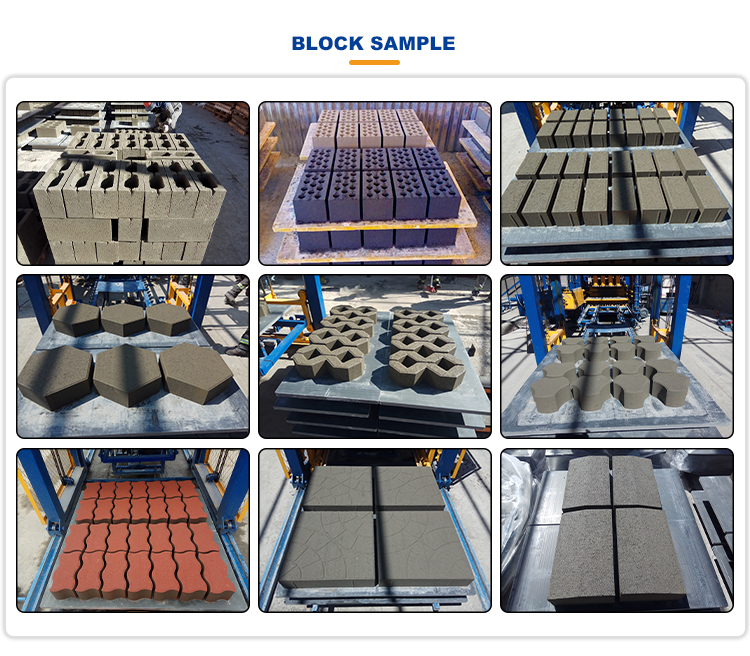

QT6-15  automatic concrete manufacturing machines list is one machine with multifunction. Changing molds can produce various kinds of specification porous bricks, standard bricks, hollow bricks, with a double material-feeding machine can produce all kinds of thecolored road bricks, grassland bricks, and slope protection bricks etc.

QTJ6-15 is a fully automatic product developed by our company .And hot sell since been in the market .This machine is suitable for the small and medium sized block factories for mass production.

1. This equipment is mechanical hydraulic PLC controlled synthesis technique equipment. Its characteristic is high efficient, easy-operated and easy-maintained. Block molding mainly by hydraulic, machinery as sideline, vibrate and press to finish molding blocks. The compressive strength of all blocks more than 15MPa, compactness is high, impermeability and freeze resistance is better, and excellent capacity of sound insulation, heat insulation, insulation.external dimensions are precise, the blocks are more consistency, low waste rate.
2. The design and manufacture of this machine accordance with the requirement and standard of<Industrial block making machine for building>

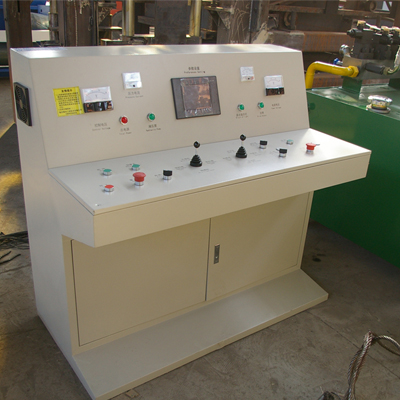

3. A high degree of automation, intelligent electronic control, automatic process is controlled by advanced PLC(Programmable Controller), input and store of process data and touch screen for blocks, it have ideal of flexible Human Conversation Interface. PLC contain advanced safe logic circuit to control the action interlock, also contain fault diagnosis system

QTJ6-15 automatic concrete manufacturing machines list Main Parameter

Model

QTJ6-15

Power

29.8kw

Weight

8800kg

Overall size

4160(L)*1800(W)*2600(H)mm

Forming cycle

15-20S

Pallet size

900*700*25mm

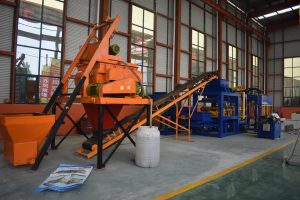

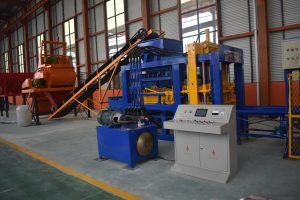

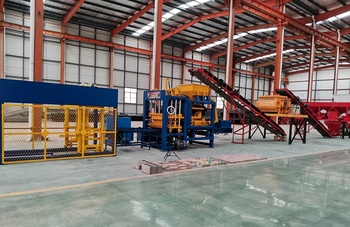

QTJ6-15 Concrete hollow block making machine Installation

Area

4000-6000m2

Workshop

100m2

Raw Material Work Shop

600m2

Office

60m2

Staff And Workers

4-6 person

Power Distribution

50kw

Water Consumption

8T per day

Pallets need

2000pcs

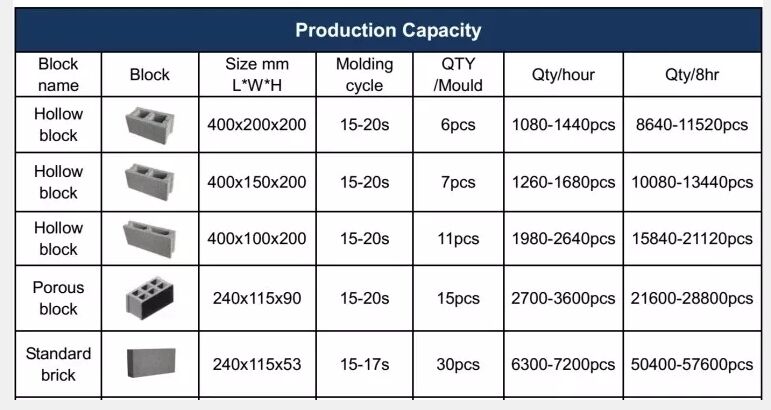

QTJ6-15  Concrete building material machinery Capacity



其他信息

重量 10000 公斤
尺寸 7260 × 4000 × 3050 厘米
