QT4-15 concrete block type machine foundation design

$13,500.00

  • The 4-15 block machine is fully automatic block molding machine. It means all motions are finished by PLC control.
  • Meanwhile,it requires minimum four workers to operate this concrete hollow block making machine and other related machines,like mixer,packing finished blocks.
  • The QT4-15s uses strong table vibration to keep air away from the concrete,so it can make very strong and high density concrete block/cement brick.

描述

1.QT4-15 concrete block type machine foundation design factory production description

a. Raw material   use wheelloader delivery into batching machine , need 1 worker

b. Cement delivery into mixer, from cement silo  by cement screw conveyor (

c. Mixer mixing  material, then delivery to brick machine (9) by conveyor  here need 1 worker

d. After produce blocks, block receiver , delivery blocks to stacker

e. Forklift ( delivery blocks to curing area , need 1 worker

f. Curing area : Curing need 10-15 days, then take blocks out from pallet; need 1-2 workers

g. After curing, take blocks out from pallet, pallet delivery to Pallet feeding machine  by forklift

Blocks laying in block stock area

h. Sell blocks: Sell blocks and management; 1 worker



(1)QT4-15 brick manufacturing machine cement making machinery- introduce

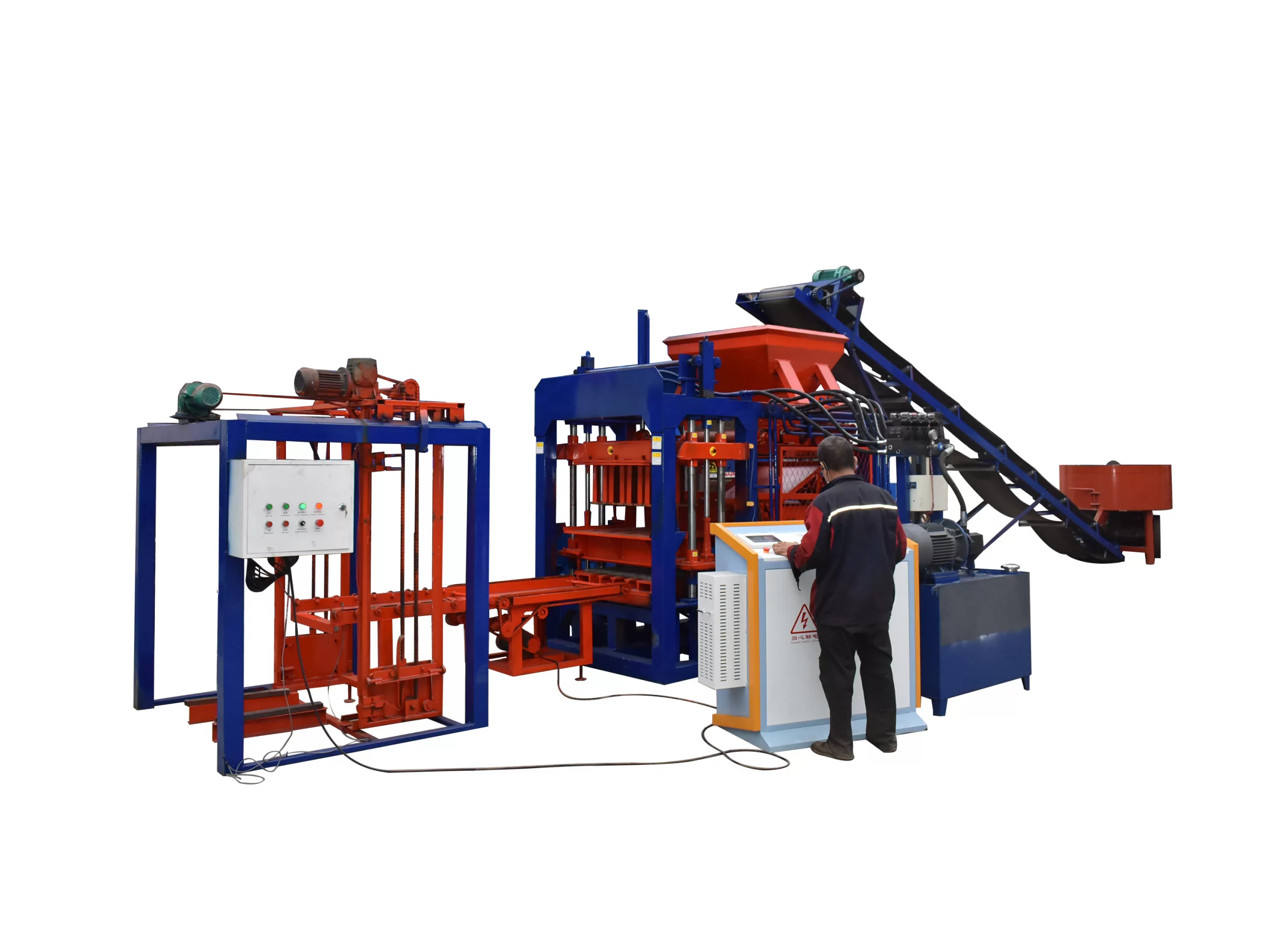

A QT4-15 Host brick machine
a. Automatic pallet system
b. Automatic material feeding system

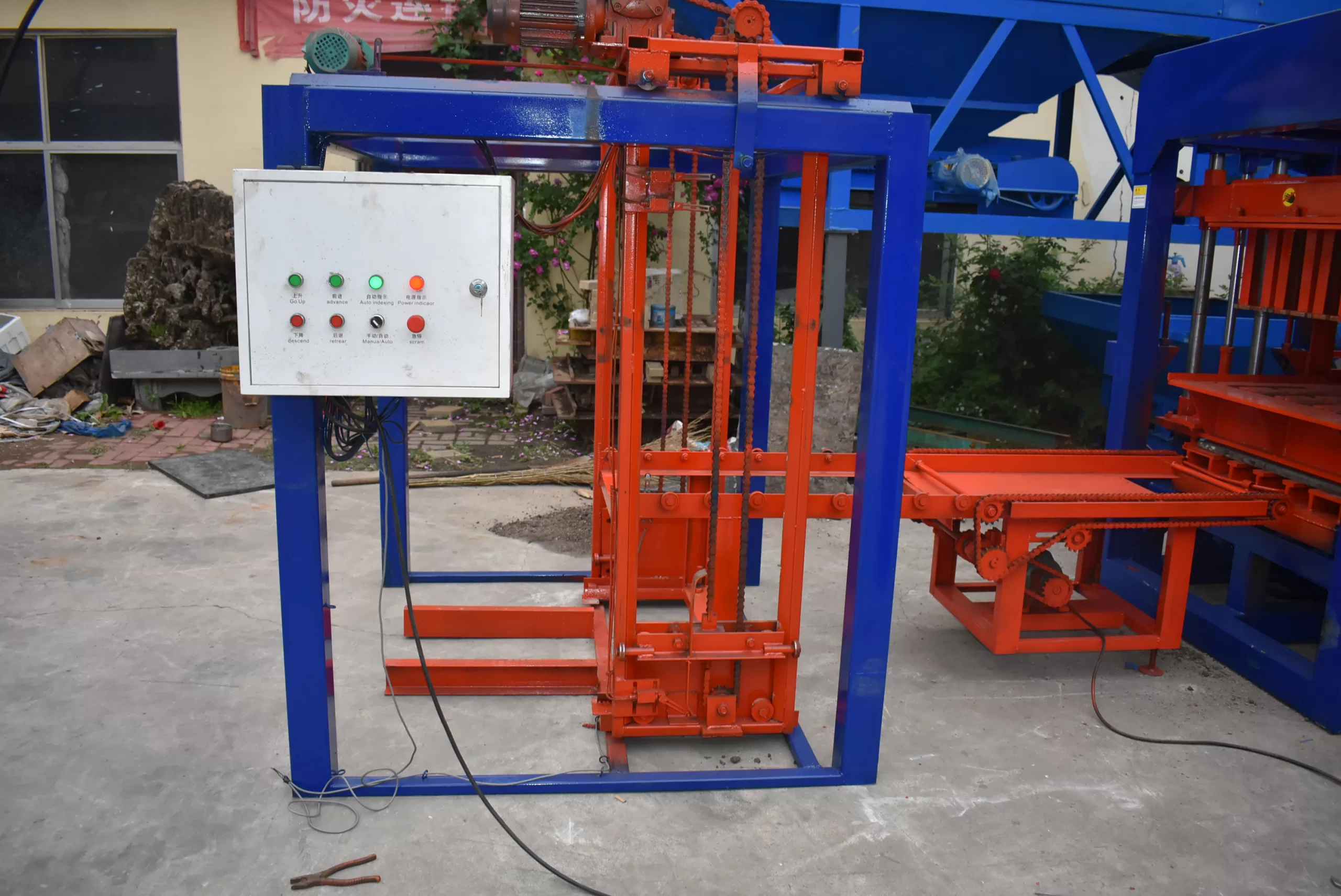

B Block receiver
C Stacker, it could layer 4-5 pallets blocks
D 6m conveyor
E JS500 Mixer bigger power, 25.1KW
F Batching machine PLD 800, power, 9KW
Color feeder system
(Optional)
QT4-15 Color feeder machine–Automatic hydraulic machine
Color mixer–1.2m; 7kw
6m conveyor

(2)QT4-15 Automatic brick plant technical information:

QT4-15 Host machine total power 22.2KW
Molding cycle 15s
Host brick machine size 3740*2230*2450mm
Pallet size 960*550mm

3.QT4-15 concrete block type machine foundation design capacity:

Item Block Production capacity Photo
1 Hollow/Solid block

400-200-200mm

4 pcs/mold
7680 pcs/8h
QT 4-15 Hydraulic Full Automatic Hollow Block making Machine
2 Hollow/Solid block

400-150-200mm

5 pcs/mold
9600 pcs/8h
3 Hollow/Solid block

400-100-200mm

7 pcs/mold
13440 pcs/8h
4 Houdi block

450-120-200mm

5 pcs/mold
9600 pcs/8h
QT 4-15 Hydraulic Full Automatic Hollow Block making Machine
5 S shape paver

225-112.5-60mm

12 pcs/mold
23040 pcs/8h
QT 4-15 Hydraulic Full Automatic Hollow Block making Machine
6 I shape paver

200-160-60mm

10 pcs/mold
19200 pcs/8h
7 Holland paver

200-100-60mm

14 pcs/mold
26880 pcs/8h
